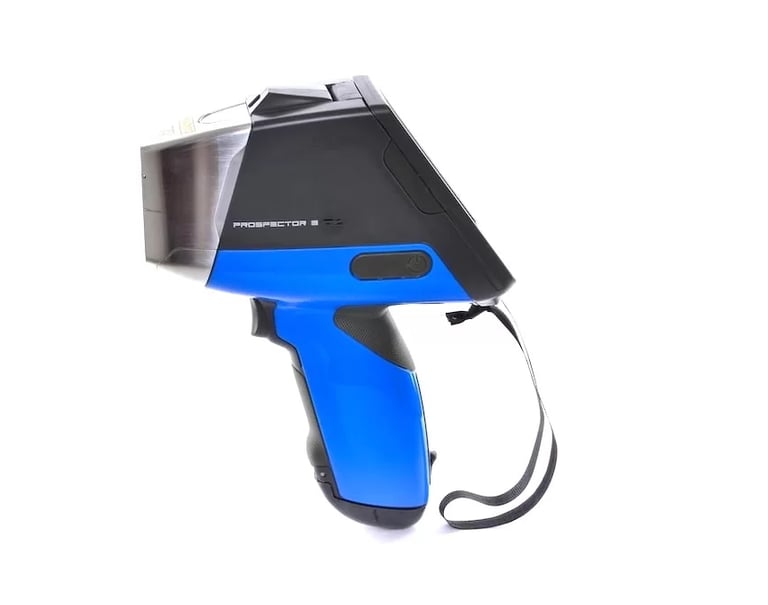

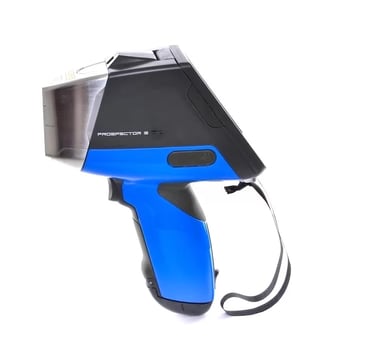

Prospector 3 - Elvatech

TREASURE HUT

"Where Rarity Is Common"

The ProSpector 3 is the world’s fastest and most advanced handheld XRF analyzer, delivering unmatched speed, precision, and portability for a wide range of applications. With a throughput exceeding 500,000 cps, it ensures accurate results in record time. Compact and lightweight (236 х 193 х 68 mm, 1.05 kg), it features a rugged IP-67 dustproof and waterproof design, making it operable even underwater.

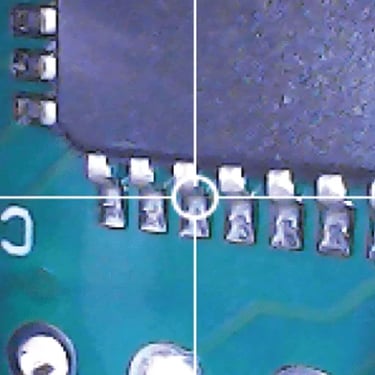

Equipped with an automatic collimator changer for precise small spot analysis, a folding display for lab stand convenience, and dual CCD cameras for macro- and micro-view capabilities, it offers unparalleled versatility. The ProSpector 3 boasts up to 16 hours of battery life with hot-swap functionality, advanced calibration stability to adjust for environmental changes, and multiple data transfer options, including USB, Wi-Fi, Bluetooth, and MicroSD.

Additional features include barcode scanning, radiation safety mechanisms, and a durable detector shield to protect the Be window from sharp objects. Fully compatible with ElvaX™ PC software and customizable with a range of accessories, the ProSpector 3 sets a new standard for speed, accuracy, and usability in handheld XRF analysis

Warranty

The 36-month manufacturer's warranty includes parts and labor. The buyer is responsible for shipping to/from. WARRANTY DOES NOT cover repair(s) of any mechanical damages of any kind, i.e. drops, spills, miss handlings, any damages to the detector window, or any foreign items dropping into the aperture(s). These are high-tech devices they record any abnormal occurrences; the manufacturer will confirm all concerns with a report from the device.

Digital X-Ray Source digiX-50
Anode: Rh, W
Voltage: 50 kV
Current: 200 uАmp
Power: 5 W
8 positions filter changer
2 position collimator changer


X-Ray Detector
Type: SDD
Area: 10, 30, or 40 mm 2
Energy resolution: <140 eV @ 5.9 keV
Count rate: 500,000 cps

Electronics
DPP: proprietory DAS (Dynamically Adaptive Shaping) type, 80 MHz sampling rate
MCA: 4096 channels

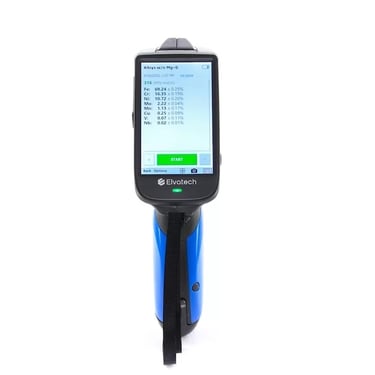

Display: 4.3″
Connectivity: USB, Bluetooth, Wi-Fi
2 high-resolution video cameras

General
Dimensions: 236 х 193 х 68 mm
Weight: 0.82 kg, 1.05 with battery kg
Protection: IP67

Software
Operating system: Windows EC7
Analysis algorithms: Fundamental parameters (FPA), Empirical (regression) calibrations


Calibrations
Alloys from CL-U
79 elements!
*
Precious Alloys
*
Coatings up to 20μm for Au, and 40μm for Ag

Prospector 3 Interest Form

Please use the Interest Form Estimate tool to estimate the cost of your very own custom-made Elvatech Prospector 3 XRF machine! When you are satisfied with you selections, please fill out the Prospector 3 Interest Form on the right to send your request to Treasure Hut! Treasure Hut will then assist you in finalizing your choices, payment, and shipping for your very own Elvatech Prospector 3 XRF!

Handheld XRF Analyzer Prospector 3- An Introductory Video from Elvatech showing off the Prospector 3

Handheld XRF Analyzer Prospector 3- An in-depth Video from Elvatech giving information on the Prospector 3
