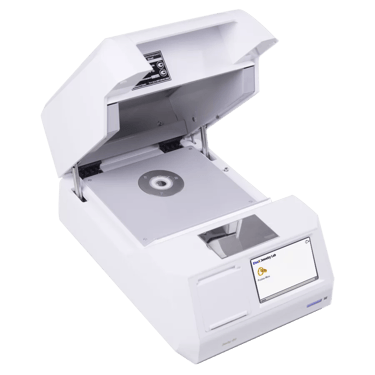

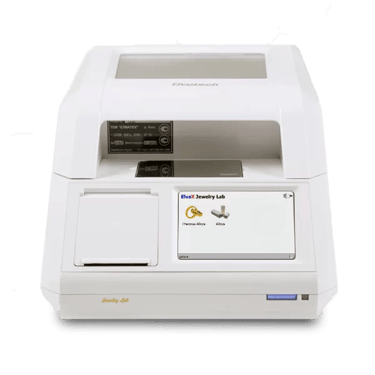

The ElvaX Jewelry Lab is a compact, high-accuracy analyzer designed for the precise analysis of jewelry and precious metals, offering results within seconds. It measures both percent share and karats while detecting coatings and non-standard alloys, making it an essential tool for professionals.

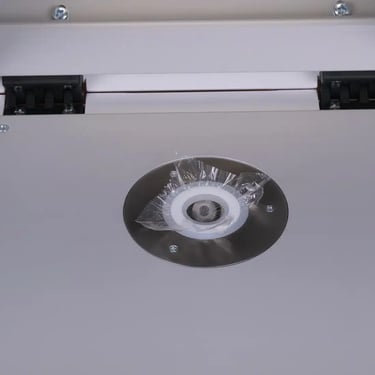

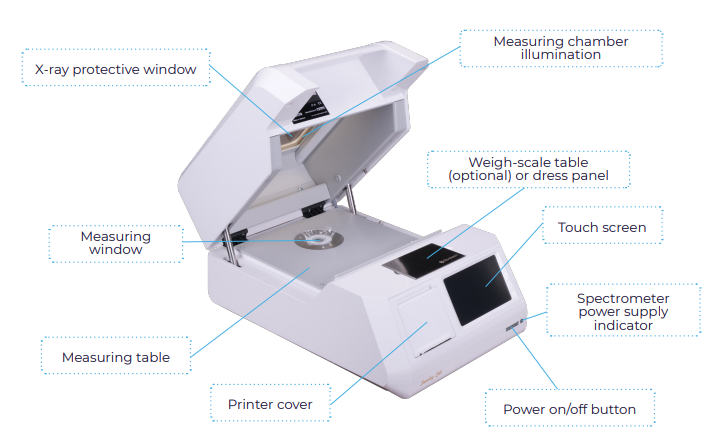

The instrument can operate autonomously using an embedded computer with a high-resolution touchscreen display or via a PC with ElvaX™ software. It features an integrated CCD camera for precise targeting of sample areas, a 6-position collimator changer for spot diameters ranging from 1 to 10 mm, and high-accuracy scales.

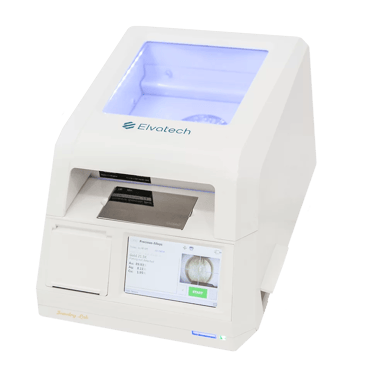

The built-in printer allows users to print analytical certificates containing chemical composition, weight, and price. A leaded glass window ensures visibility of the sample during analysis, while a customer display adds transparency. The device’s rechargeable Li-ion battery supports six hours of continuous operation, making it suitable for fieldwork.
With its intuitive interface, high speed, and accuracy (better than 0.1%), the ElvaX Jewelry Lab is a compact, space-saving solution for gold and silver purity determination, gold assay, and detecting non-standard alloys and coatings.
The Jewelry Lab features lifelong stability of energy calibration - unlike competitors, it is not necessary to perform energy calibration every time the instrument is turned on and every time it is used. Calibration automatically adjusts to compensate for fluctuations in temperature, pressure, and other factors.
The system supports data transfer via USB, Micro SD, or Ethernet and allows data input using a keyboard or mouse. This benchtop analyzer provides everything needed for reliable, professional-grade results.
Warranty
The 36-month manufacturer's warranty includes parts and labor. The buyer is responsible for shipping to/from. WARRANTY DOES NOT cover repair(s) of any mechanical damages of any kind, i.e. drops, spills, miss handlings, any damages to the detector window, or any foreign items dropping into the aperture(s). These are high-tech devices they record any abnormal occurrences; the manufacturer will confirm all concerns with a report from the device.
Digital X-Ray Source digiX-40
Anode: W
Voltage: 40 kV
Current: 200 uAmp
Power: 4 W 6 position collimator changer from 1 to 10mm
X-Ray Detector
Type: SDD (optional Si-PIN)
Area: 30 mm2 (6 mm2 for Si-PIN)
Energy resolution: <140 eV (<180 eV for Si-PIN) at Mn Kα
Electronics
DPP: proprietary DAS (Dynamically Adaptive Shaping) type MCA: 4096 channels
General
Dimensions: 280 х 385 х 200 mm
Analytical chamber: 185 x 212 x90 mm
Weight: 7 kg
Power supply: 90 – 240 V, 50/60 Hz
Power consumption: 40 W
Battery: 6 hours continuous operation
Software
Operating system: Windows EC
Analysis algorithm: Fundamental parameters (FPA)
Connectivity
Data transfer: 2 USB ports, Micro SD, Ethernet
Data input: Keyboard and mouse can be connected for data input
